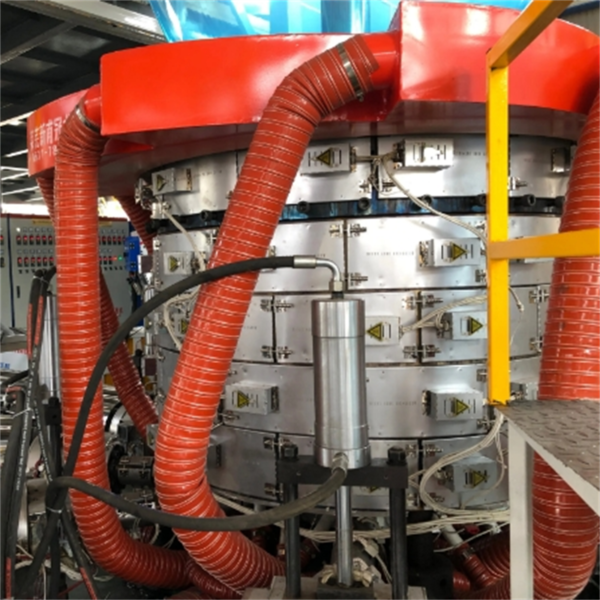

3 layer Greenhouse Film Blowing Machine
This line is used to produce greenhouse film:
- Film width: 6-24 meter (open width)
- Film thickness:
0.08-0.12mm
0.08-0.15 mm
0.08-0.20 mm
3. Raw material: LLDPE, MLLDPE, LDPE, EVA and adhesive etc,
Main Technical Parameters:
| Model | WX-3L8M | WX-3L10M | WX-3L12M | WX-3L14M | WX-3L16M | WX-3L18M | WX-3L20M | WX-3L22M | WX-3L24M |
| Max. width (mm) | 8000 | 10000 | 12000 | 14000 | 16000 | 18000 | 20000 | 22000 | 24000 |
| Film thickness (mm) | 0.08-0.12 | 0.08-0.15 | 0.08-0.20 | ||||||||
| Layers | 3 | ||||||||
| Raw material | LDPE LLDPE EVA etc. | ||||||||
| Max output (kg/h) | 500 | 600 | 800 | 1000 | 1500 | 1600 | 1700 | 1800 | 1900 |
| Extruder | 90×2 100×1 |
100×2 120×1 | 120×2 135×1 | 135×2 150×1 |
150×2 180×1 |
180×3 | 180×2 200×1 |
200×3 | 200×3 |
| Total power (kw) | 680 | 750 | 900 | 1000 | 1400 | 1500 | 1650 | 1800 | 1900 |
| Overall dimention (m) | 12x8x18 | 14x9x20 | 18x11x22 | 18.2×11.2×23 | 20x13x26 | 20x16x31 | 22x18x33 | 25×35 | 25×37 |
We can produce 1-5 layer 3-24 meter width greenhouse film machine.
More information, please contact us!
FAQ:
1.How about your products warranty ?
One year(12 months) Warranty will be provide from the date of container arrive Clients’factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
2.What are your Payment and delivery terms?
Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight
Delivery time: Standard will be in 30-40 working days
3.What Technical Support we can get if order machines?
We can provide Installation Drawings,Basic operating instructions,Operation explanation through Video&Photos,Online video calling for technical support if necessary.
